Technical Desiging Service

GBM Bulking Engineering, as the EPC contractor and the Corresponding equipment manufacturer for the dry bulk cargoes handling system, we are doing the designing, manufacturing and site construction etc..
GBM has the technical designing team with more than 20 members are professional on the equipment and system designing.
For meeting the global situation, GBM is providing the technical designing service, technical support, and key components to the local manufaturers for developing the market together.
the designing service cover the system and equipment for the dry bulk cargoes handling at port terminal and warehouse. include the initial proposal designing, detailed manufacturing designing, technical engineers support for manufacturing and site erection and commissioning etc.

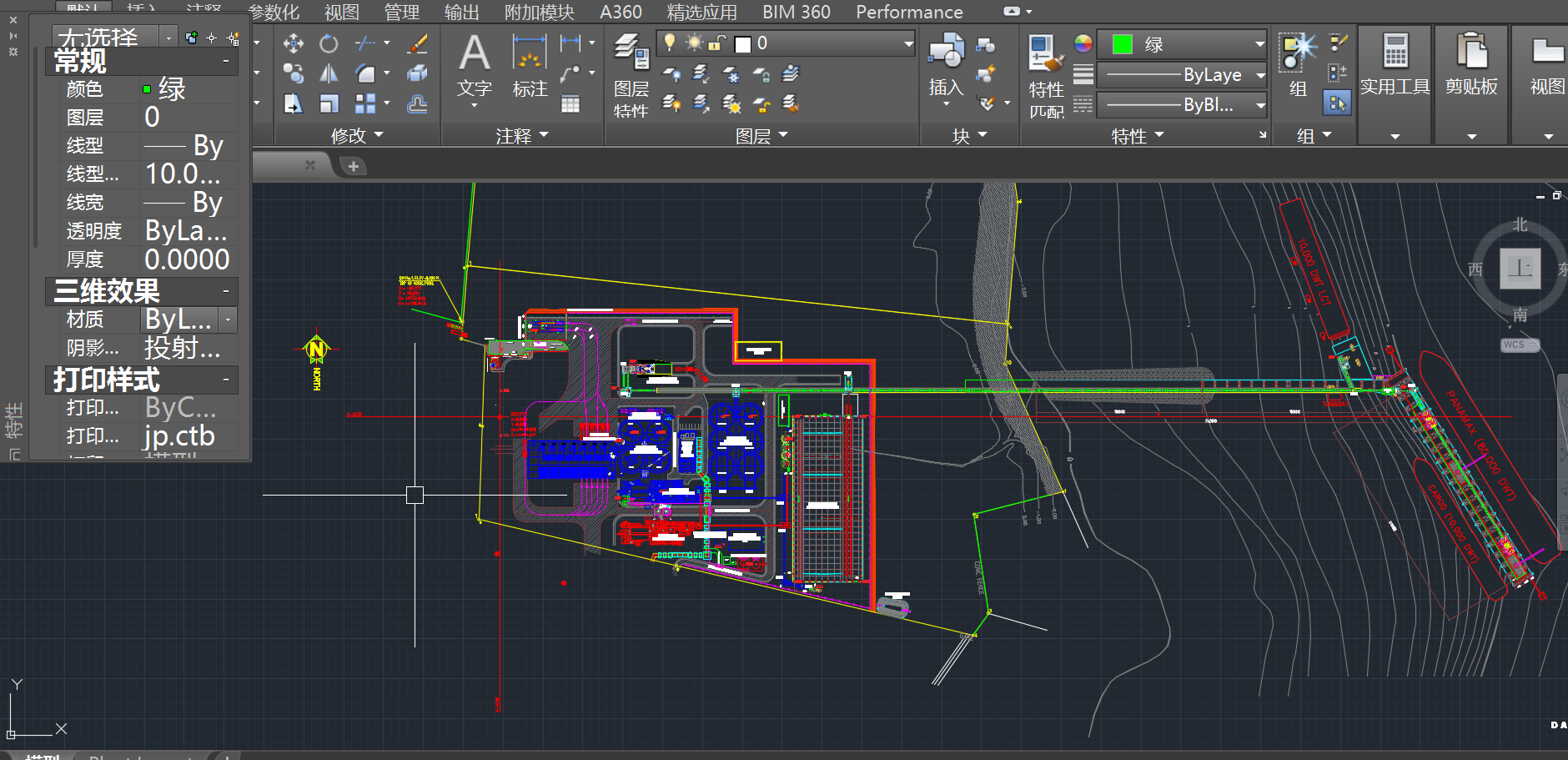

The mainly designing with software include AUTO CAD, PHOTOSHOP or required by clients.

Designing service covered in details as
1. Port& Jetty infrastructurer and construction designing
2. Dry Bulk Cargoes Port Terminal Transite center
3. Mobile Ship Loader on tyres or rails, or stationary
4. Mobile Ship Unloader with Pneumatic model, Bucket Elevator model, Screw model
5. Equilibrium Crane, Harbor Crane, STS with Grab
6. Mobile dedusting hopper/Non dedusting hopper
7. Large volume grabs, Orange Peel grabs, Electrical Hydraulic Grabs, and other customized grabs as dredging grabs, scissor grabs, desiel engine grabs etc.
8. Bagging machines
9. Container handling Equipment designing
10. Other customized designing to equipment related with port handling

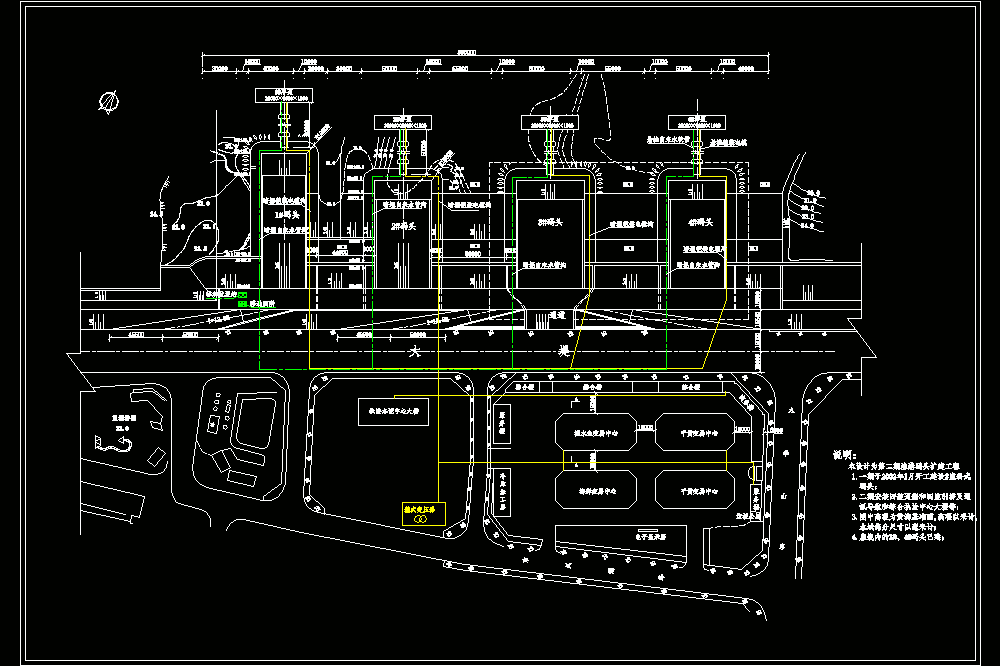

Designing for Port Construction and infrastructure, include the embankment design, port layout design, loads calculation, Embedded parts planning, pipeline, cable etc. planning etc.

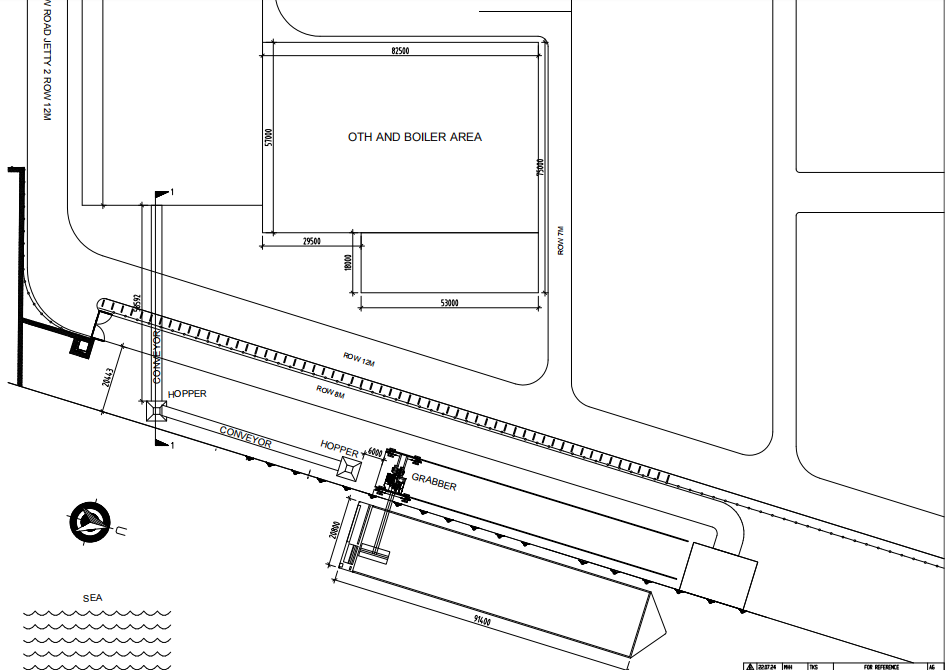

Dry Bulk Cargoes port terminal transit center planning and designing, include the ship loading/
unloading, cargoes transportation, stacking and distribution.

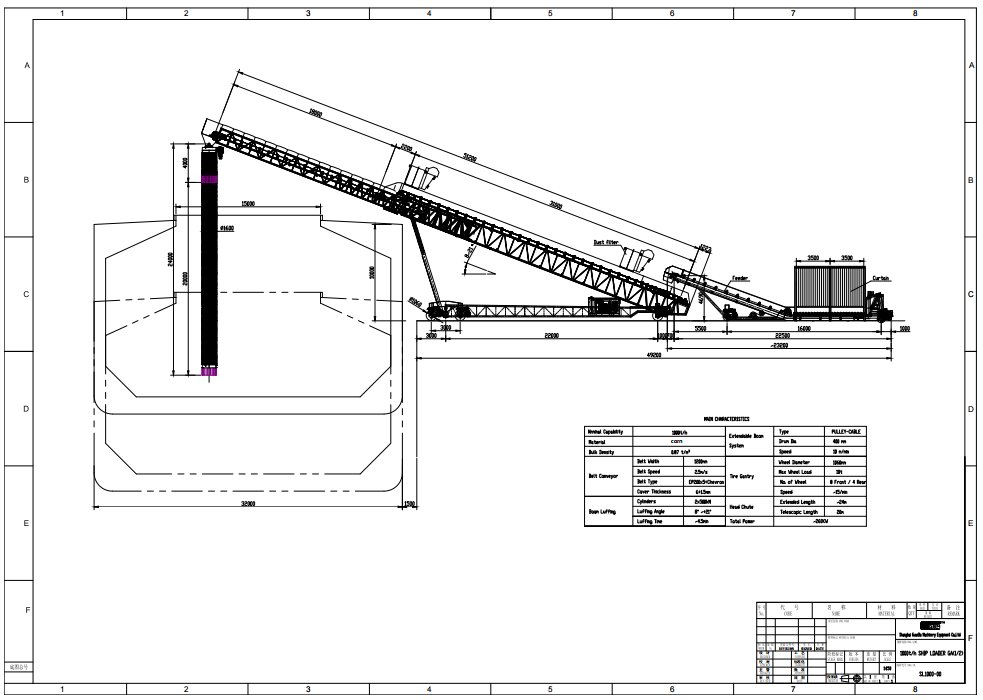

Ship Loaders designing, including the General Assembly designing, detailed manufacturing designing, SOP and maintanance schedule Formulating

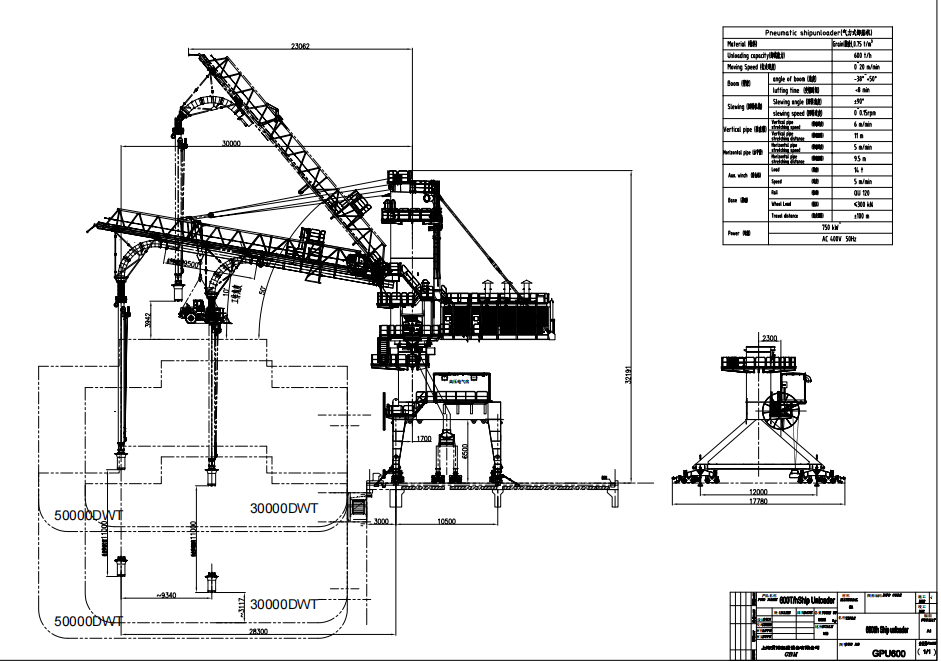

Ship Unloader

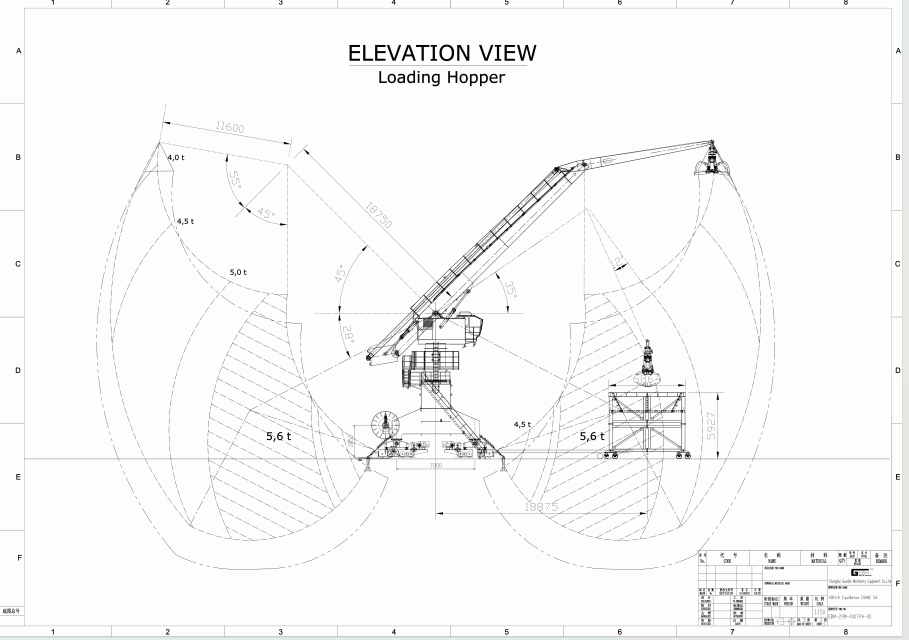

Unloading Cranes

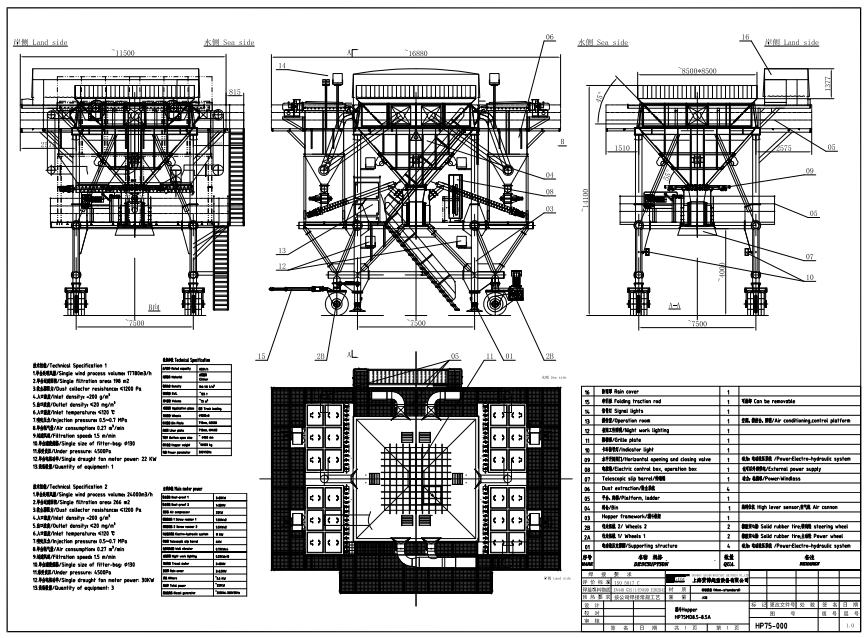

Port Hoppers

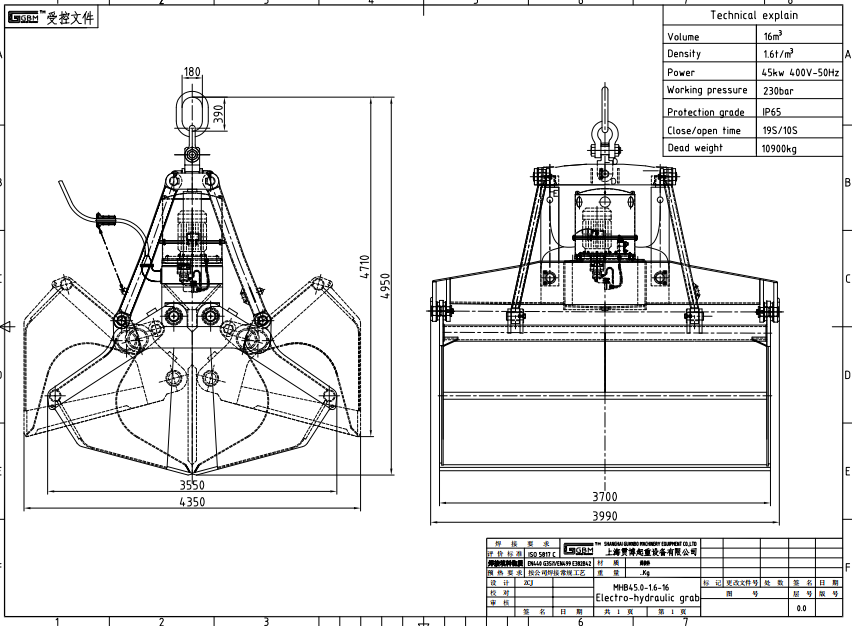

Grab Buckets

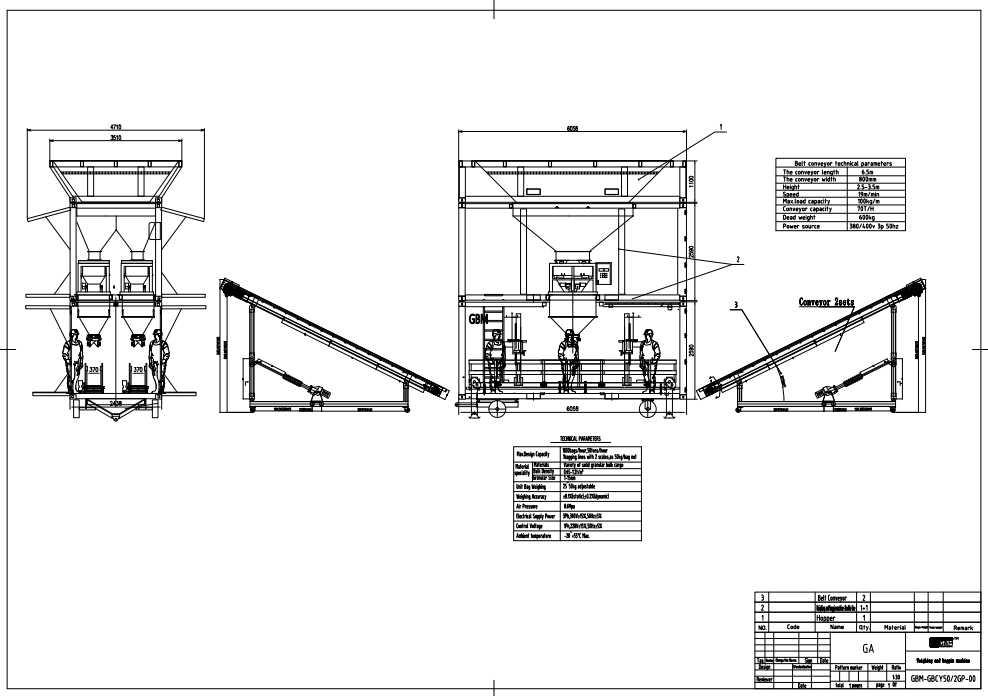

Bagging Machines

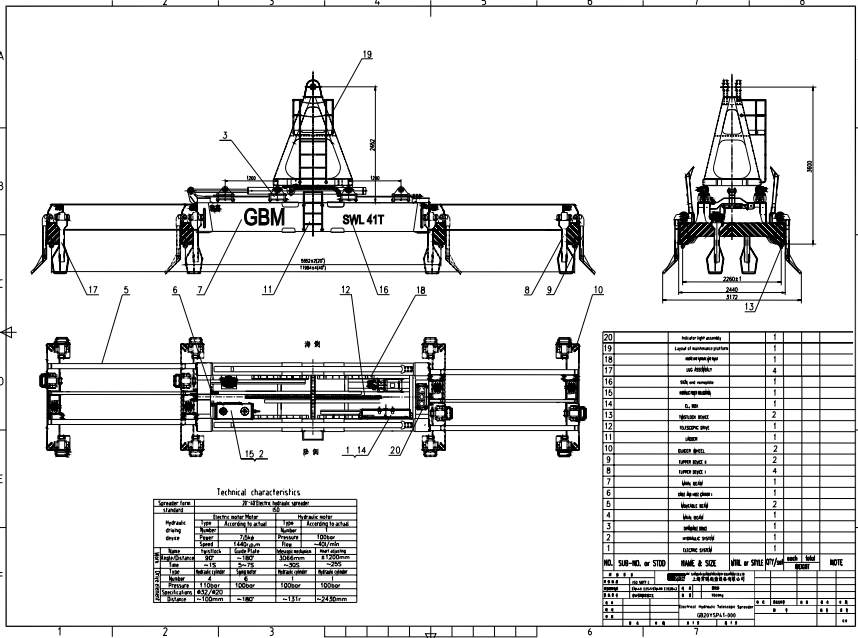

Containers Lifting Equipment
