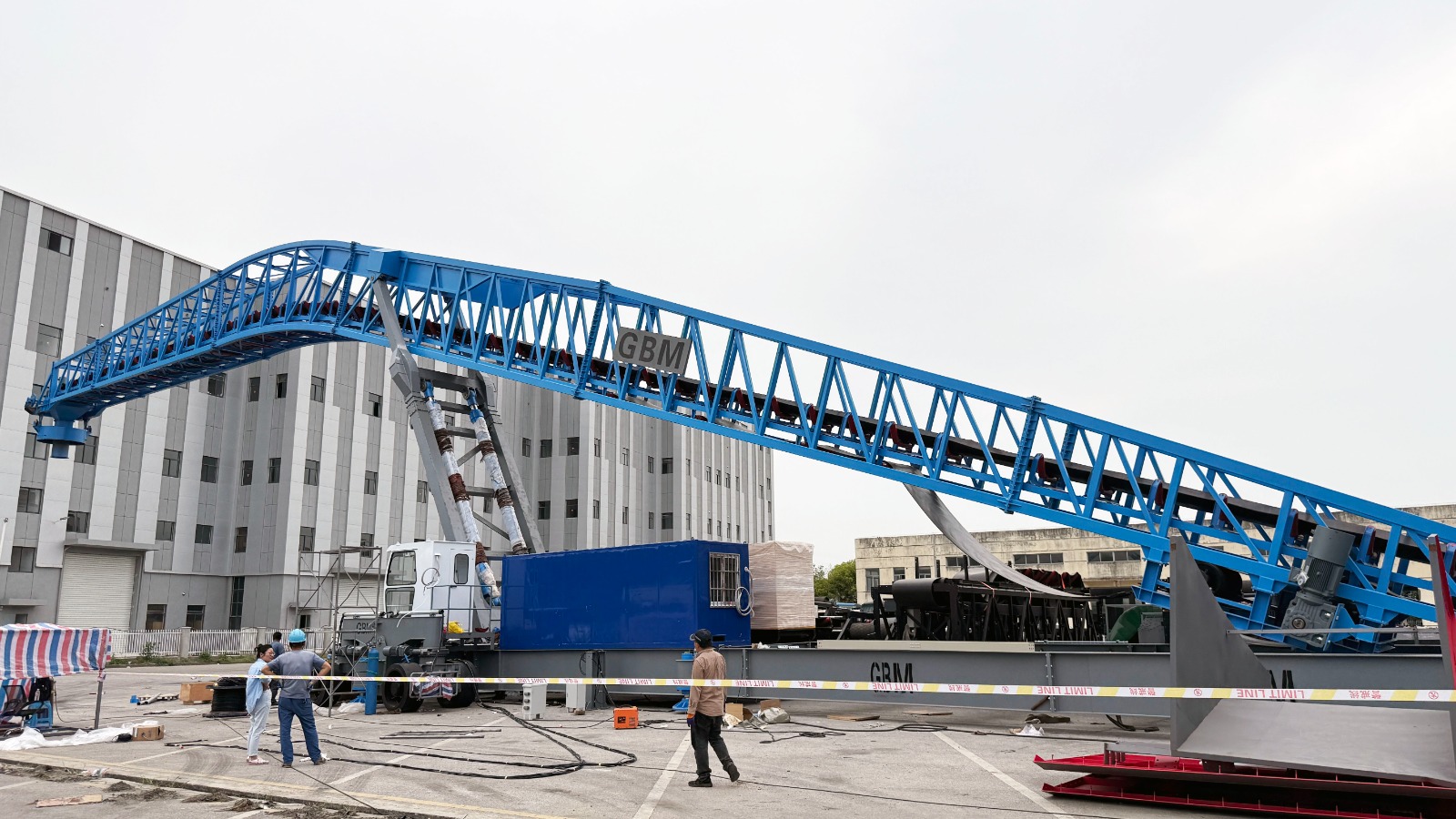

Mobile ship loader on tires, structure
1. mobile feeder for dump truck or belt conveyor discharging the material
2. Belt conveyor boom, which could be stationary arc boom or telescopic boom, max. outreach 58m
3. travelling and steering mechanism on tires
4. telescopic chute for material loading to the vessel or barges
5. dust protection system
6. maintenance aisle and platform
features as
1. material feeding, the equipment has the feeding unit involved, which could be used for dump trucks discharging material into the system from one or both side, the ramp for the truck equipped. as well the feeder could be suitable for the payloader loading the material, or belt conveyor.
2. the belt conveyor boom could be made with stationary arc shape or telescopic type
3. travelling and steering mechanism based on the tires, so that the machine could be driven on the port, it could be self driven to the position for loading, or moved to storage after the loading completely. as well it could be swing with different angel to meet the loading to each corner of the tanks.
4. the boom with different luffing angle for loading the ship at the different height of the deck positions, max. angle could be up to 25°
5. the design with diesel generator to provide the power for travelling and operation, or diesel generator for travelling only, the shore power for operation.
6. the equipment with dust proofing system so that to collect the dust to protect the environment.
7. Telescopic Chute equipped for the material loading with different height, by the height of the material up, the chute will be retracted automatically.
8. the capacity could up to 2500TPH.
GBM design and manufacture the Mobile Ship Loader with professional technology and knowhow since some years ago, with several cases done successfully, complete series models were done during the years. with very perfect performance.
Compare with other maker, the definitely advantage from GBM is excellent performance and much less cost investment. with very high known in the worldwide.
